Description

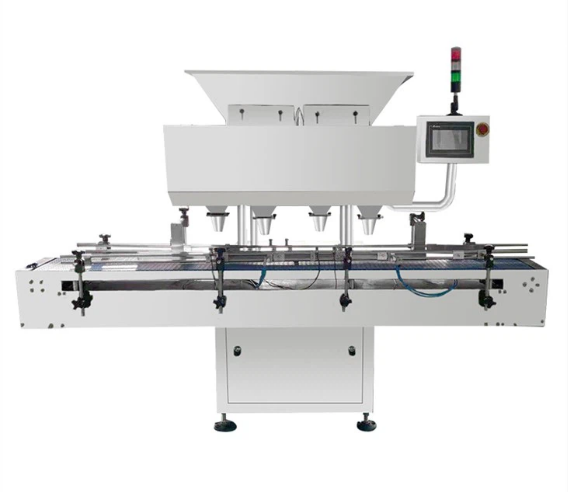

The automatic capsule counting machine adopts advanced control systems, which controls the whole process including counting, filling and monitoring.
The working of pill counting includes three steps:
Products enter the small warehouse through the vibration of the feeding corrugated plate
The counting photoelectric sensor senses and accurately measures the products
Finally puts the drugs into the container; finally put the drugs into the container
This pharmacy pill counter machine is accapble to connect with other intelligent packaging equipment such as bottle capper, aluminum foil sealing machine, labeller. According to the needs of customers, we can provide a variety of customized production lines of equipment.
Features
Good manufacturing practice (GMP) standard
Wide application of various objects counting
Anti-dust sensor technology
The counting signal communicates with the control system at high speed
Half vibration-filling hopper, to avoid pills from getting jammed
Bottles will be rejected automatically under abnormal operation
The feed-in and feed-out conveying system shall be integrated with the filler equipment.
Automatic detection of empty bottle positioning and bottle missing
HMI operation with multi-group parameters storage
multi-level password management system
Easy to maintain, remove, clean, change parts
Technical Parameters
Model | SL-32 |
Application | 1. Filled capsule(000-5#) 2. Soft Gels 3. Chewing gum 4. Tablet 5. other solid object under machine range |
Hopper Volume (L) | 82 |
Capacity (bottles/min) | 10-100 |
Filling Quantity (pcs/bottle) | 2-9999 (adjustable) |
Bottle Size (mm) | Diameter: 20-50 Height: 40-180 |
Counting Size | 1. pills diameter: ≤20 2. 000-5# capsule size 3. tablets diameter: 5.5-22 (plain tablets, special-shaped tablets, sugar-coated tablets) |
Compressed air | 0.6MPa 5L/min |
Power | 220V/50Hz 1.3kW |
Machine Weight (kg) | 710 |
Machine Size (L*W*H mm) | 2160*1530*1700 |
Application
The capsule counting machine is able to count & fill different shapes or size of products accurately like soft gel capsules, hard gel capsules, tablets, sugar coating, and film coating tablets, pills, herb medicine or similar products into jars,bottles and containers.
