Description

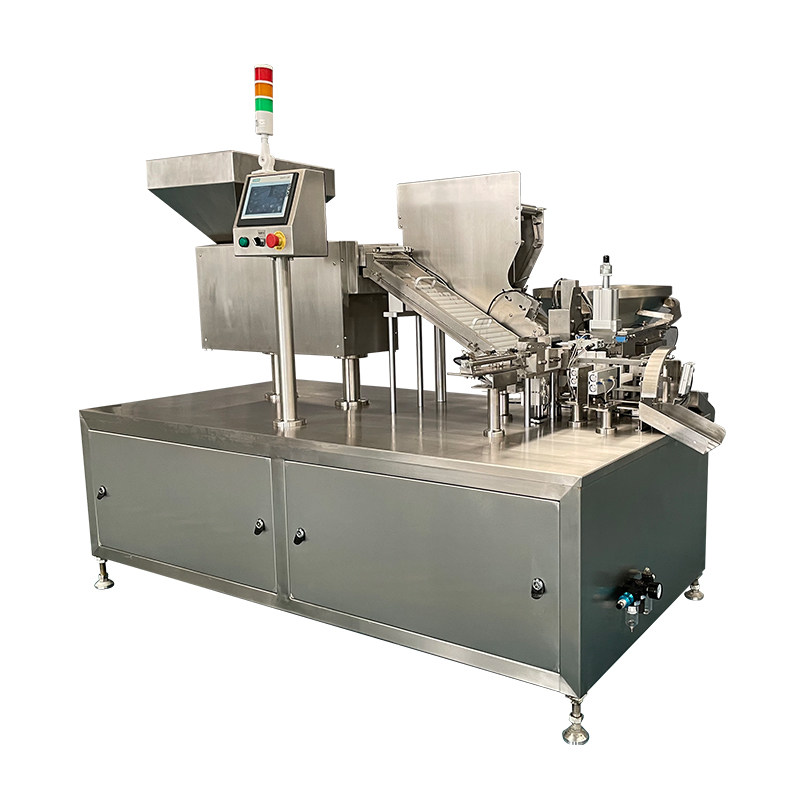

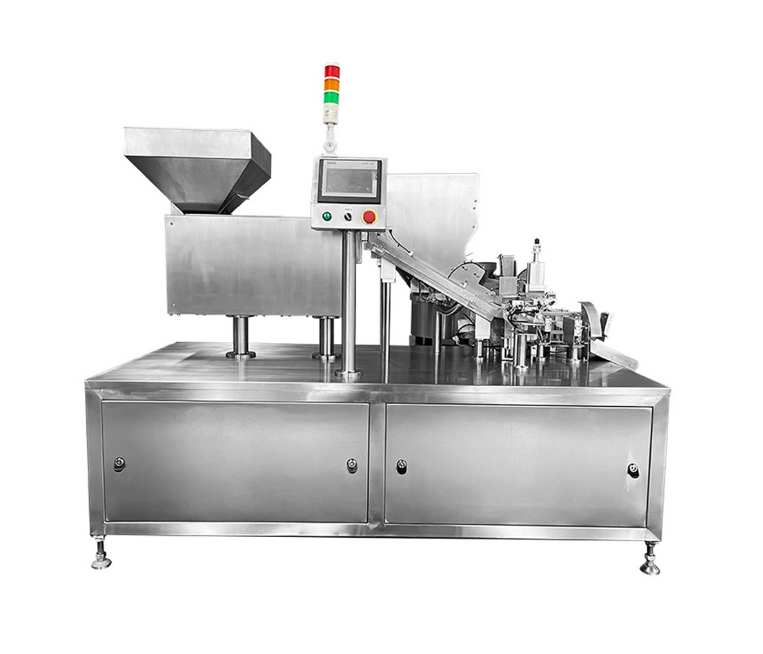

PTG-40 automatic tube filling machine for effervescent tablets is ideal for packaging larger and thinner tablets that are fed into spool bottles in a single row sequence in an overlapping manner, which utterly adopts a PLC for centralized control.
All materials on the machine that are in contact with tablets are made of SUS316L, which fully meets the requirements of GMP. The rest parts adopts high quality 304 stainless steel, enamel paint, and aluminum alloy sandblasting, to create a brand new effecient packaging equipment. The effervescent tablet tube filling machine will automatically alarm and shut down in case of no tablets, bottles or caps.

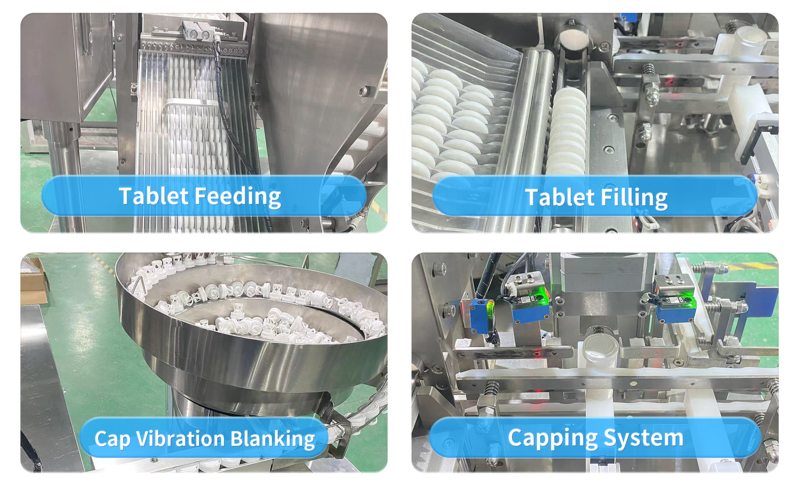

Features
PLC control system
Automatic alarming when lacking of material
Adopts cylinder and stepper motor
Accurate photoelectric detection
Capping system will stop if lacking of tablets
Automatic removal of bottles without caps
| Model | PTG-40 |
Voltage (V) | 220 |
Total Power (kW) | 1.5 |
Capacity (bottles/min) | 20-40 |
Supporting Facilities | compressed air pressure: 0.5~0.6MPa consumption: 0.28m³/min |
External Dimensions (L*W*H mm) | 2400*1600*1800 |
Weight (kg) | about 480 |

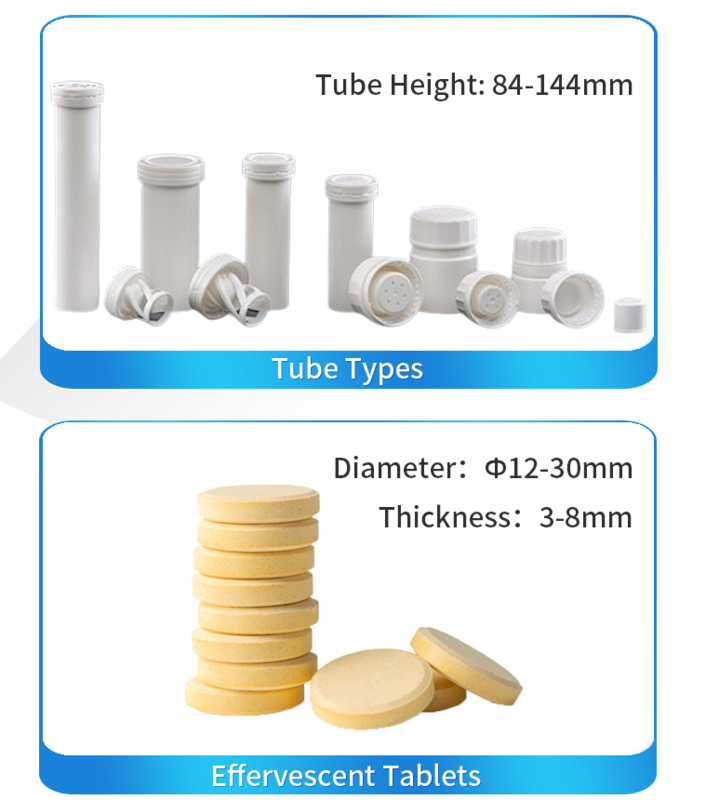

Application | tablet diameter: Ф12-23mm table thickness: 4-8mm loading quantity: 8-30 tablets (note: one machine only can be used for same diameter tablets and tube) tube height: 84-144mm (adjustable) |
*Application of Standard Machine | tablet diameter 25mm thickness 5mm quantity per tube: 20 pcs tube diameter:29mm tube height: 144mm |
Application of Automatic Effervescent Tube Filler
ETP-40 automatic tube filling machine for tablets is applicable to be customized.
