Description

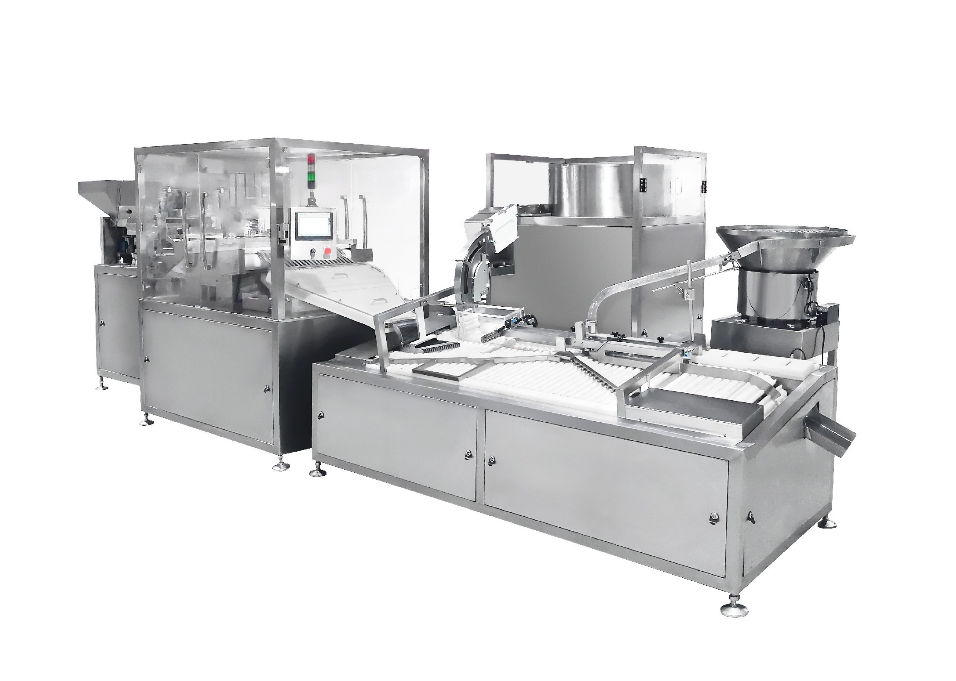

Fully automatic horizontal effervescent tablet tube filling machine realizes automatic tube unscrambling, tablet pushing, cap unscrambling and capping. This machine adopts PLC, touch screen to ensure simple operation and convenient maintenance, which is suitable for the packaging of large thin single-row tablets stacked in tubes in an orderly manner.
Features
Application
Standard Type
Diameter of tablet: 26mm
Thickness of tablet 6.0-6.3mm
Filling capacity: 10-20 tablets/tube
Diameter of tube: 29mm
Height of tube: 85-144mm
Parameter
Model | PTG-80 |
Capacity (tubes/min) | 60-80 |
Voltage | 220V 50Hz 5kW |
Compressed Air (MPa) | 0.5-0.6 |
Air Consumption (m³/min) | 0.28 |
Overall Dimension (L*W*H mm) | 5800*2260*2070 |
Weight (kg) | 1500kg |
Applicable Range of Standard Model | Diameter of tablet: 26mm Thickness of tablet 6.0-6.3mm Filling capacity: 10-20 tablets/tube Diameter of tube: 29mm Height of tube: 85-144mm. (Can customize according to customer’s need) |
