Description

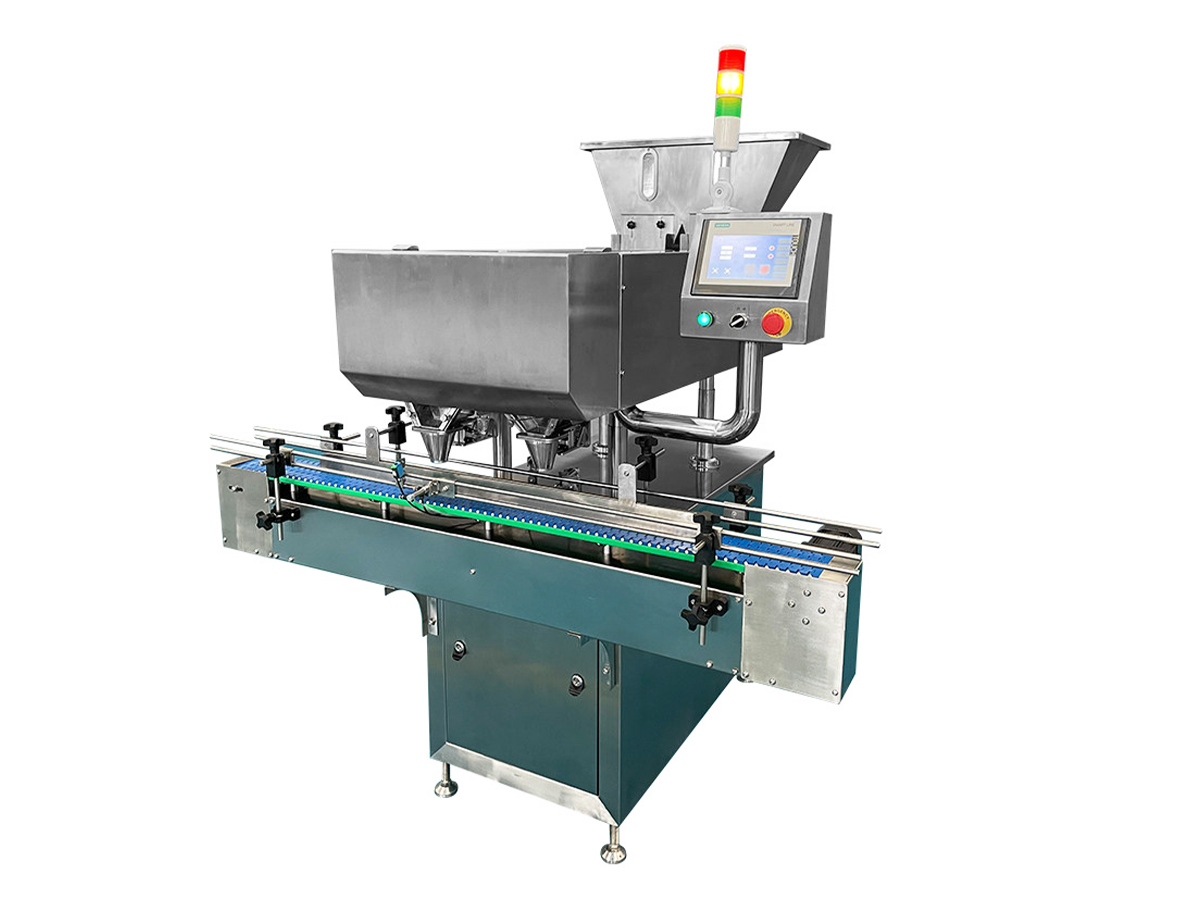

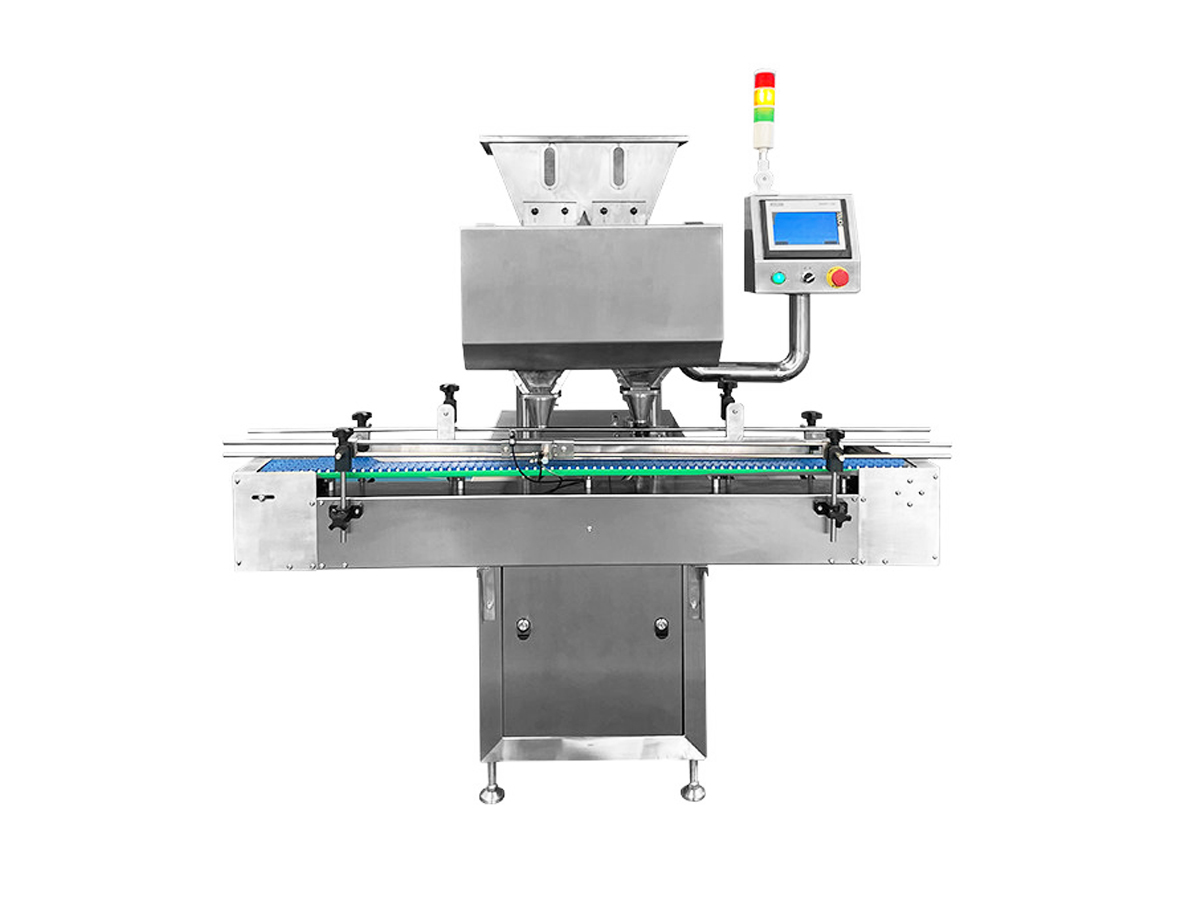

The pharmaceutical tablet counter has two feed openings for pills loading. Meanwhile, the feeding speed of SL-16 is quicker than that of SL-8 capsule counter.
The pharmacy pill counting machine is made of high quality stainless steel in strict accordance with GMP standard requirements. It adopts a touch screen so that setting parameters become convenient. The accessories of the capsule counting machine can be easily replaced and cleaned without requiring appliances.
Features
Stainless steel machine body, meets GMP requirements

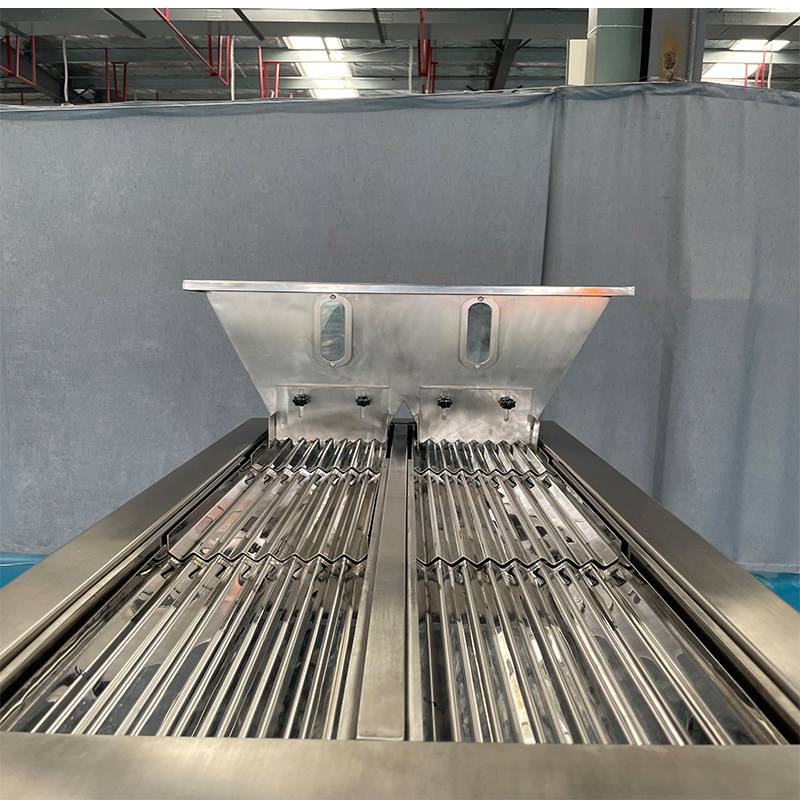

16 channels vibrate evenly for material loading
Uniform and stable discharge, no damage to medicines

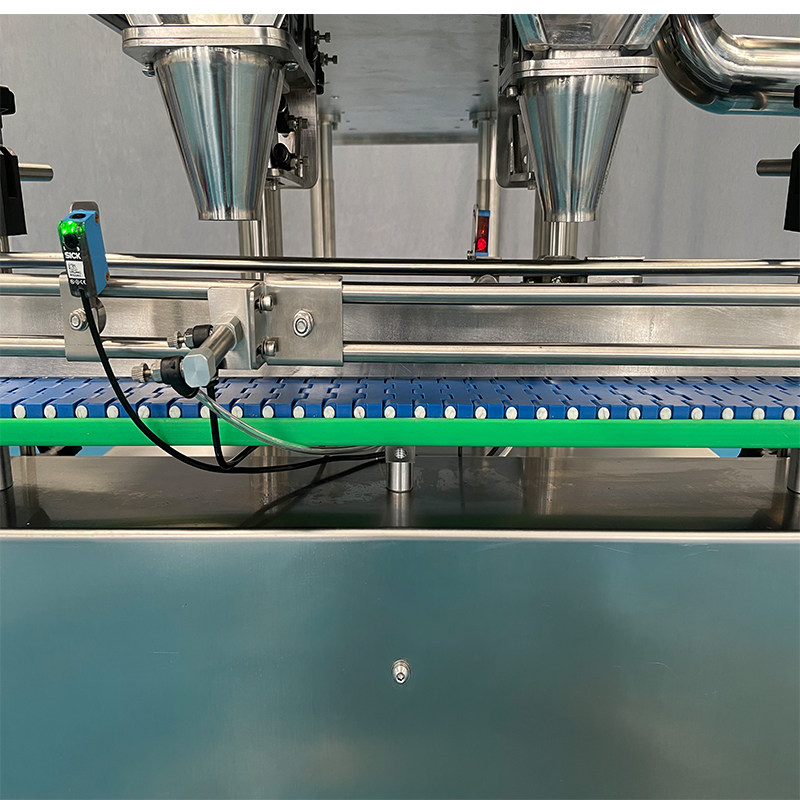

Equipped with photoelectric detector, automatic counting, small bottling error
Simple parameter setting on touch screen
Techical Parameters
Model Name | SL-16 |
Application | 1. Hard capsules (000-5#) 2. Soft Gels 3. chewing gum 4. tablet 5. other solid object under machine range |
Hopper Volume (L) | 70 |
Capacity (bottles/min) | 10-70 |
Filling Quantity (pcs/bottle) | 1-9999 (adjustable) |
Bottle Size (mm) | Diameter: 30-100 Height: 40-180 |
Counting Size | 1. pills diameter: ≤20 2. 000-5 capsules soft capsules 3. tablets diameter: 5.5-22 (plain tablets, special-shaped tablets, sugar-coated tablets) |
Compressed Air | 0.6MPa 3.8L/min |
Power | 220V/50Hz 0.9kW |
Machine Weight (kg) | 480 |
Machine Size (L*W*H mm) | 1560*1530*1700 |
Application
The capsule counter machine for sale is widely used in counting and bottling of solid preparations, such as pills, sugar-coated tablets, plain tablets, soft and hard capsules and other shaped tablets. Round, square shaped plastic bottles can be the containers to pack products.
The machine not only can be used independently, but also with the automatic bottle unscrambler machine, desiccant inserter machine, bottle capping machine, sealing and labeling machine and other supporting equipment to form an interactive production line.
