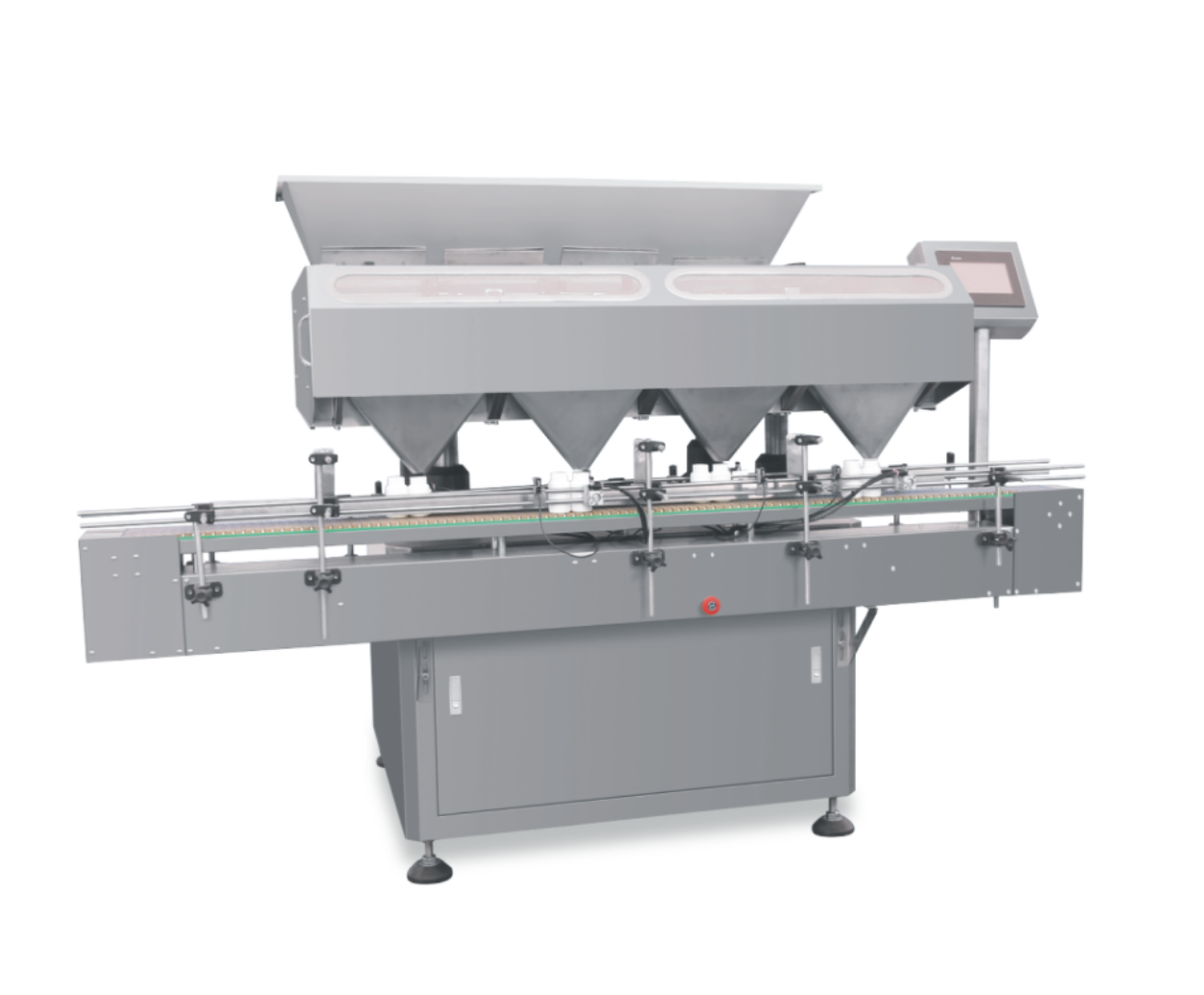

Feature
The tablet counter has a wide range of applications. It is suitable for tablets (including unconventional tablets), capsules, gels (including unconventional gels, transparent gels and opaque gels), tablets and most solid particles.
Dust proof adopts our original high dust sensor technology, the machine can have good stability in high dust environment, avoid the special material funnel mouth structure, avoid blocking the material, small caliber bottles can be quickly bottled to protect the material Avoid pollution damage.
With the help of a vibration device, the patented special filling parts feed the materials evenly, and have the function of detecting non-breaking materials. Bottles will not be counted and filled, and abnormally filled bottles will be removed automatically. Diagnose the error by itself and stop working to warn about the error.
Technical Parameters
| Application | Hard capsule (000-5#) Soft gelatin capsule Pills, pills Chewing gum, another solid object (Diameter: 5.5-22mm) |
| Capacity (bottles/min) | 10-120 bottles/min |
| Weight (KG) | 900 |
| Hopper Volume | 100L |
| Filling Quantity | 2-9999pcs/bottle |
| Power supply | 220V 50Hz 1.6KW |
| Compressed air | 0.6Mpa 5L/min |
| Machine Size L*W*H (mm) | 2160*1530*1700mm |
| Core components | Engine, Motor |
Application
Counting machines for pharmaceuticals, hospitals, food and other industries, capsules, tablets, granules and other medicines or food counting. It is small, light weight, the count is accurate, easy to operate. A number of items contact surfaces are made of stainless steel, are all relevant sectors bottled, bagged, canned products that count the ideal device.
