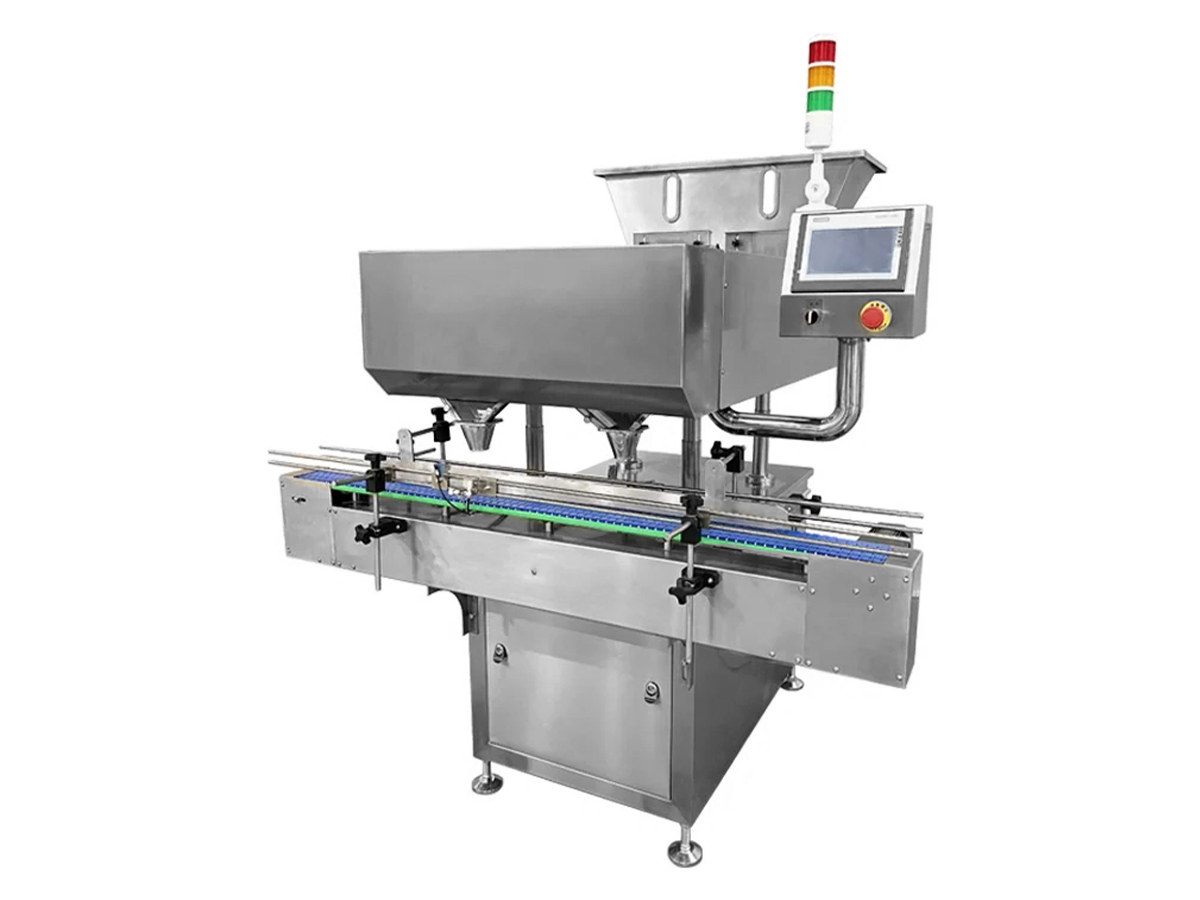

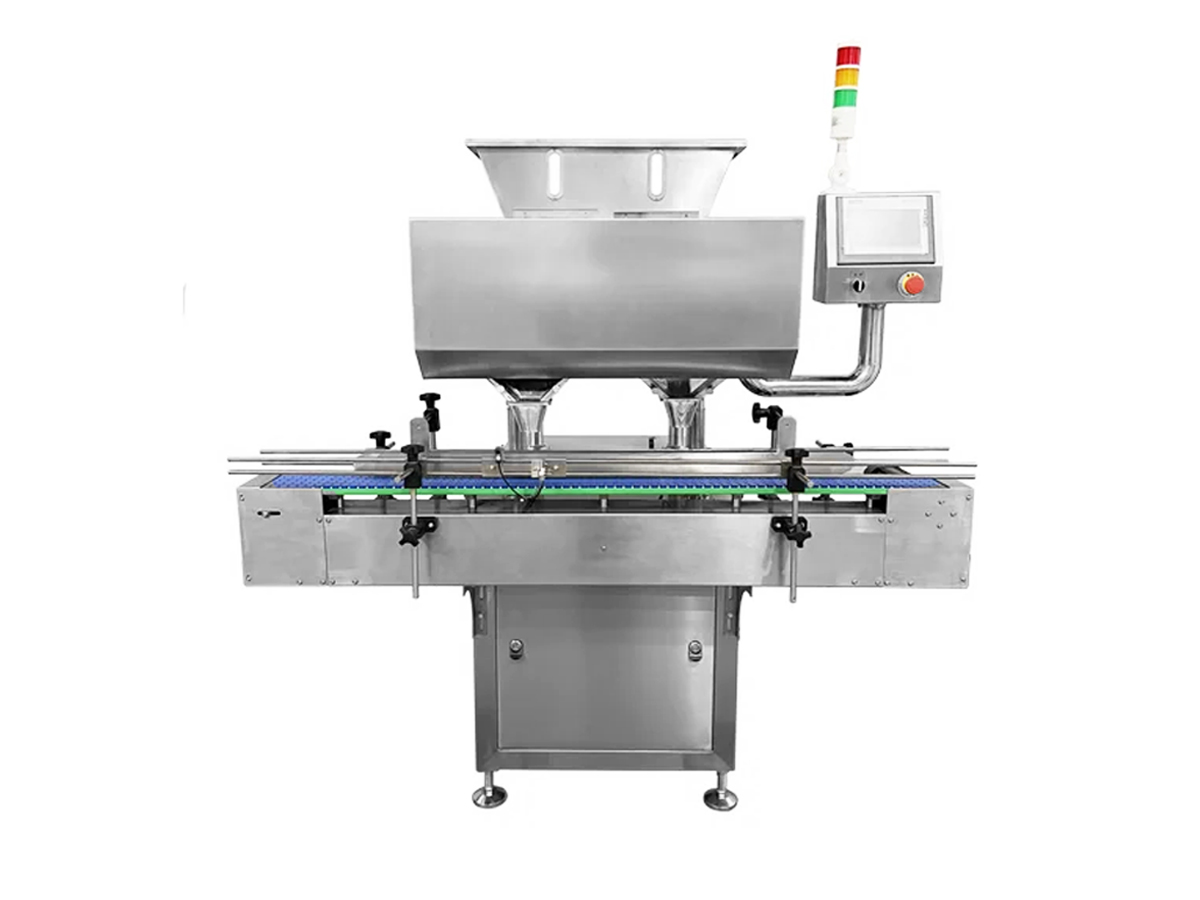

24 Channels Automatic Counting Machine

Introduction of 24-channel counting machine

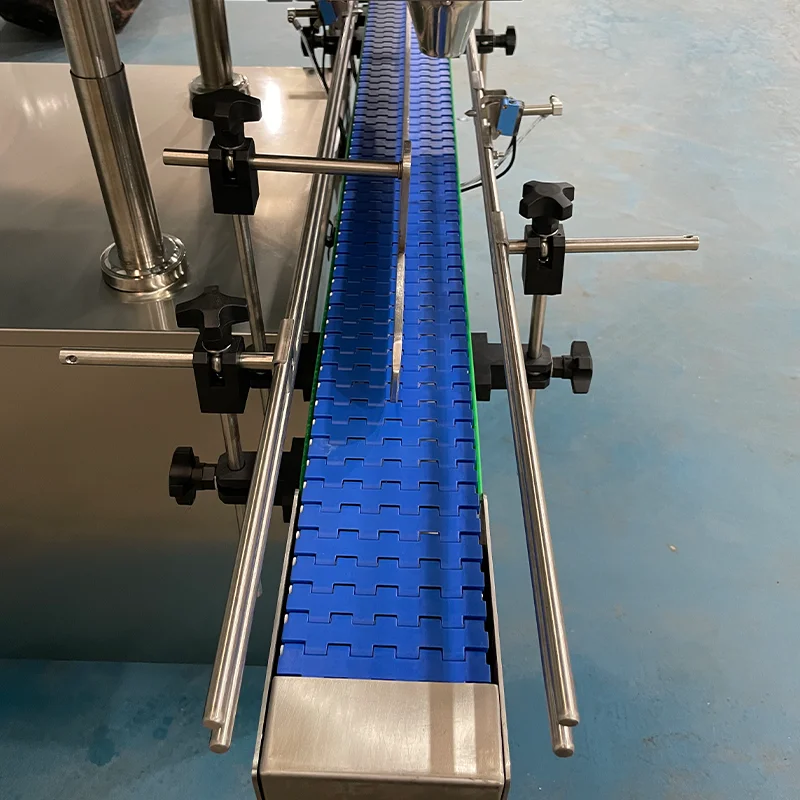

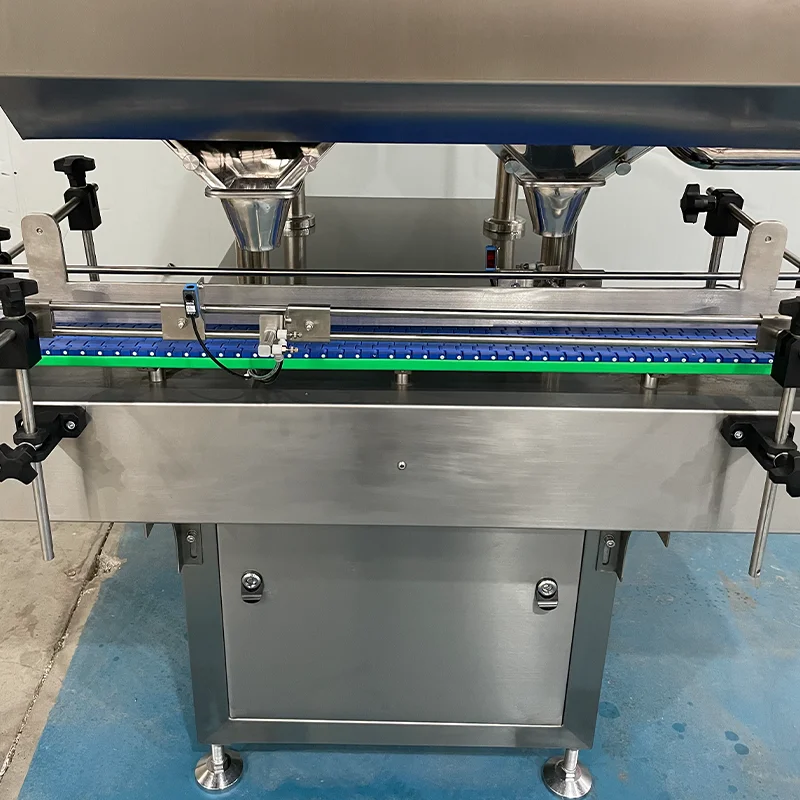

The bottles are conveyed by conveyor belt equipment to the position of the bottle stop cylinder, where they are waiting to be filled. The drugs in the silo are transported to the entrance of the detection channel in an even and orderly manner (no drug overlap) through the vibration feeding system, counted by infrared photoelectric detection, and packed into the bottle through the small flap block of the channel according to the set loading amount, and then the bottled bottle is switched through the bottle changing device to enter the next process.

24 counting machine equipment parameters

Scope of application:

Tablets：utmostφ22mm

Capsule:#00-#5

Production speed:

20-80bottle/min (depending on loading)

Quantity per bottle:

1-9999 arbitrary setting

Counting accuracy:

≥99.5%

Applicable bottle mouth size:

Φ20~50mm (customizable)

Bottle Specifications:

diameter20-50mm, height 40-180mm

Hopper capacity:

60L

Power supply:

220V/50HZ 1.9KW

Air Consumption:

0.6Mpa 4.0L/min

Weight:

560kg

Equipment Dimensions:

1560*1530*1700mm
