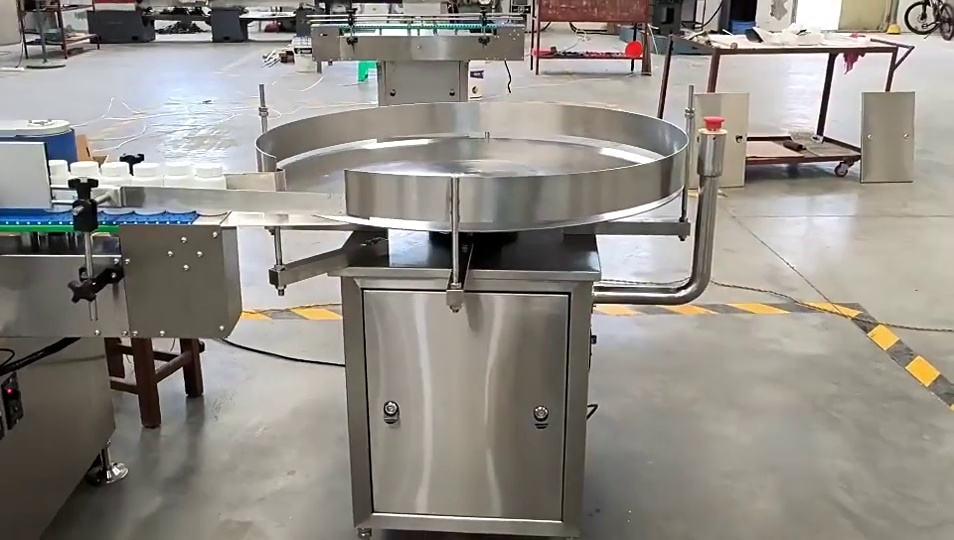

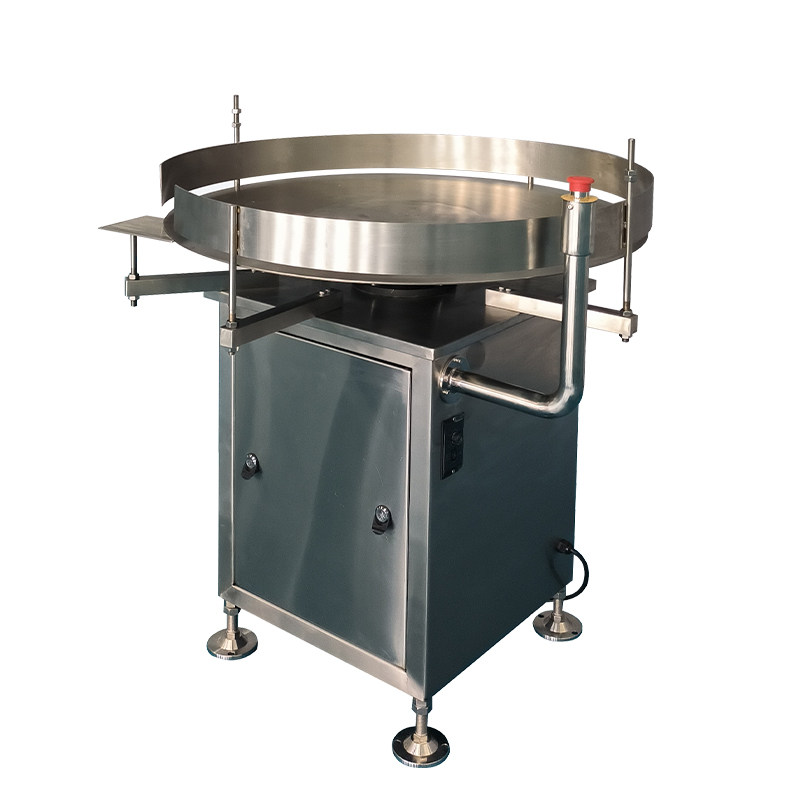

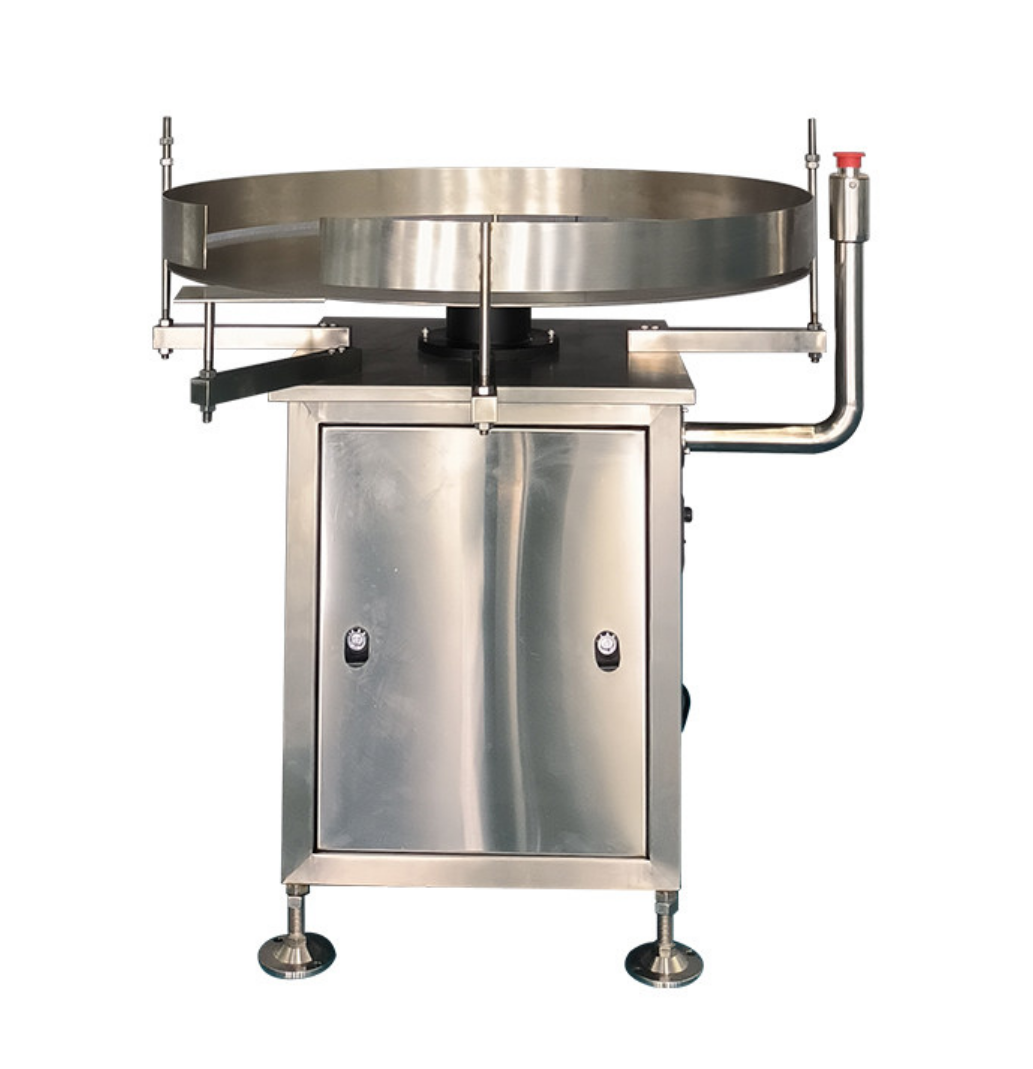

Rotary Bottle Turntable
Machine Introduction
The motor drives the bottle turntable to rotate. The bottles from the bottle storage tray on the bottle turntable are passed through the bottle dialing device, and the bottles are neatly arranged and automatically enter the guide strip. They then enter the track through the guide strip and are transported to the conveyor belt of the photoelectric counting bottle filling machine. At the joint, it automatically enters the conveyor belt for the electronic pill counting machine to fill the bottle.
Feature
Suitable for bottles of various shapes, featuring simple structure, stable performance, reliability, simple operation, convenient adjustment,and wide application range.
It can be connected to the middle of the assembly line as a buffer platform to shorten the length of the conveyor belt. Adjustable range and speed of applicable bottles.
Frames and barrels are made of high quality stainless steel, with beautiful appearance and GMP requirements.
No need to blow the bottle with air source, use the automatic bottle turning mechanism, and is equipped with bottle collecting device, which greatly improves the production efficiency.
Technical Parameters
Model | ZP-90 |
Applicable bottle type | Various round bottles, square bottles, special-shaped bottles |
Production speed | 20-150 bottles/minute |
Bottle specifications | Diameter 20-100mm, height 40-180mm |
Power supply | 220V/50HZ 0.3KW |
Equipment size | 900*900*1040mm |
Weight | 120KG |
