Introduction：

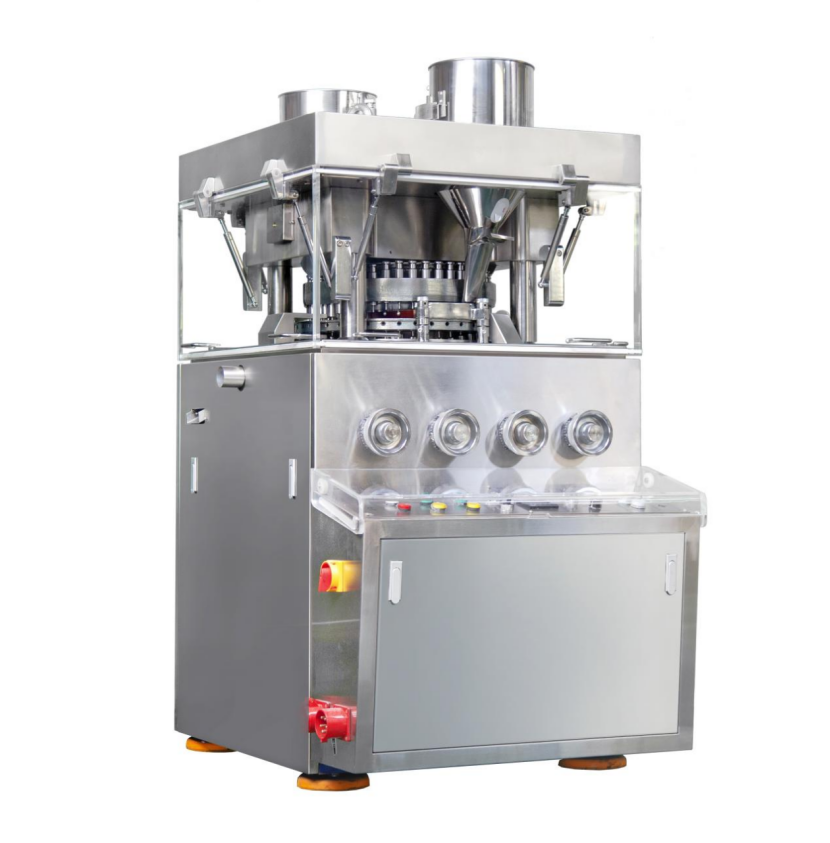

This machine is a double-pressing automatic rotating, continuous tableting machine that presses granular raw materials into tablets. It is suitable for pressing double-layer double-color tablets, special-shaped tablets, and ring-shaped tablets. It is mainly used for tablet production in the pharmaceutical industry, and is also suitable for chemical, food, electronics and other industrial sectors.
Main features:
1. The outer cover is fully enclosed, and the material is stainless steel. The internal table is made of stainless steel, which can protect the surface gloss and prevent cross contamination, and meet GMP requirements.
2. The doors and windows are equipped with transparent glass, which can clearly observe the state of tablet pressing. The side panels can be fully opened, which is easy to clean and maintain the interior. All controllers and operability are reasonably arranged.
3. The variable frequency speed regulator device is used for electrical speed regulation, which is convenient to operate, rotates smoothly, and is safe and accurate.
4. Equipped with an overload protection device, it can automatically stop when the pressure is overloaded.
5. The transmission system is enclosed in the oil tank under the main body of the machine. It is an independent component that is safely separated and will not be contaminated with each other. The transmission parts are immersed in the oil pool, which is easy to dissipate heat and wear-resistant.
Main technical parameter
Model | ZP31D |
Number of punches | 31 pairs |
Max. tableting pressure | 120 kN |
Max. tableting diameter | 20 mm (22 mm for special shapes) |
Max. filling depth | 15 mm |
Max. tablet thickness | 6 mm |
Turntable speed | 14-36 rpm |
Max. production capacity | 130,000 pieces/hour |
Power supply | 220V Three-phase 60Hz |
Main motor power | 7.5 kW |
Dimensions | 1170×1150×1750 mm |
Net weight | 1950 kg |
