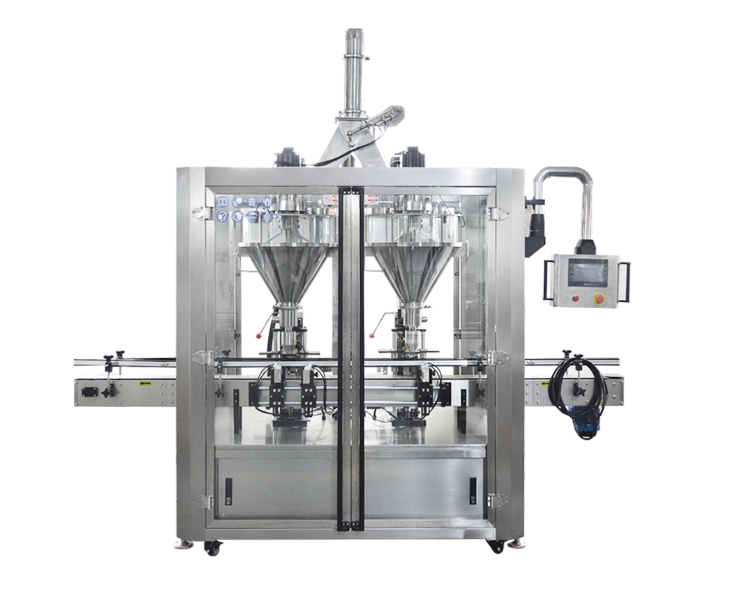

Machine Introduction
The powder filling machine is designed according to the national GMP standard. This machine can form an assembly line with bottle unscrambler, capping machine, labeling machine and other equipment.
It is suitable for filling powdered materials in the food, medicine, daily necessities and other industries. Such as powdered and ultra-fine materials such as milk powder, glucose, protein powder, cocoa powder, coffee powder, rice powder, solid beverages, etc.
The whole machine frame is made of stainless steel. The motor, cylinder, electrical accessories, pneumatic components, etc. are all selected from well-known brands, and the brand can also be specified by the customer. It can be used for food, medicine and corrosive chemical raw materials.
Machine Features

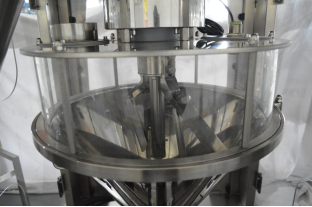

1. All stainless steel structure, combined transparent material box, easy to disassemble and wash without tools.

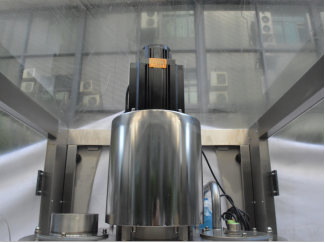

2. High-precision servo motor controls filling and accurate measurement.
3. Various product adjustment parameter formulas can store for future use.
4. Replace the spiral attachment to adapt to a variety of materials from ultra-fine powder to small particles.
5. Touch screen PLC control, no filling without bottle.
Technical Parameter
Item | Description |
Production capacity | 30-45 bottles/minute |
Applicable specifications | 100-1000g |
Number of filling heads | 2 heads (optional multiple heads) |
Measuring error | ±1% |
Power supply | 380V 50/60hz |
Power | 2.2KW |
Dimensions | 2000×1000×1980mm |
Weight | About 2000kg |
