Description

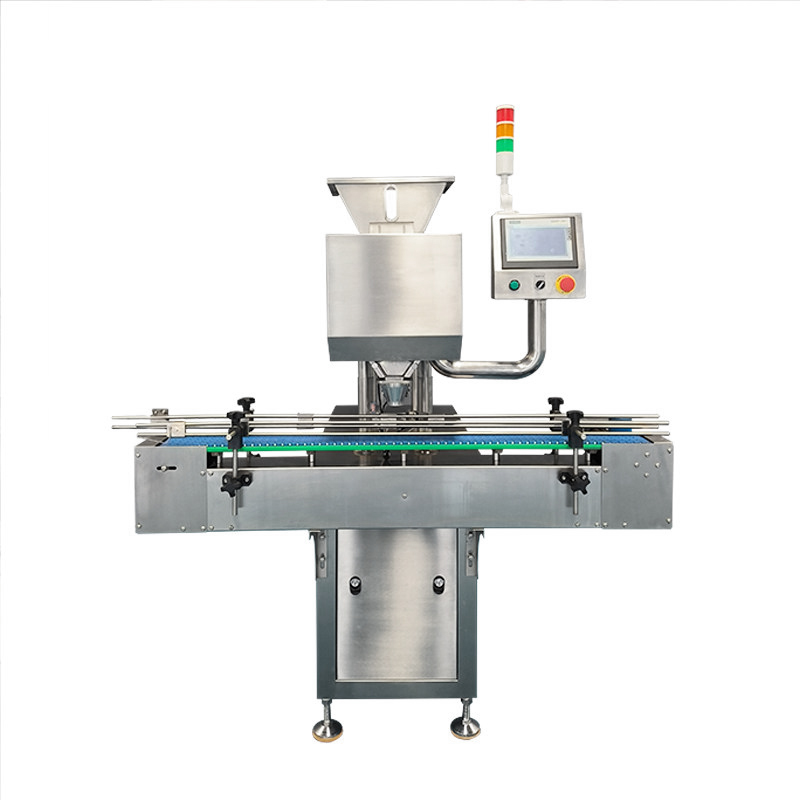

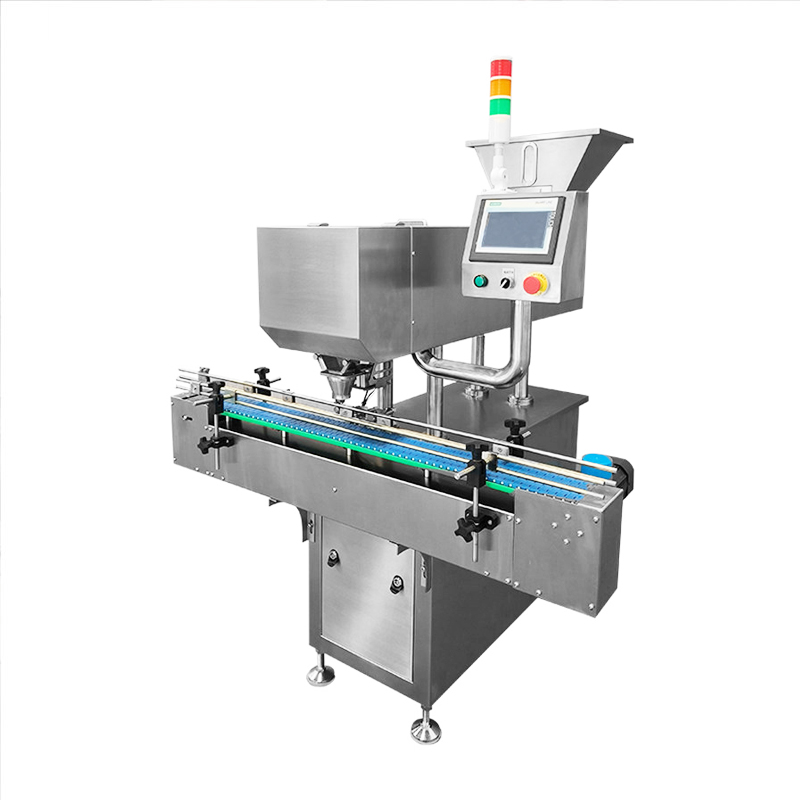

8 channels automatic tablet capsule counting machine uses the principle of photoelectric to count, divide bottles and transport the drug particles, and can monitor and set all the running data in real time. The whole body of the auto tablet counting machine is made of stainless steel, in line with GMP standards.
The machine helps you improve the production efficiency of pill counting and packaging, which requires the reasonable tablet counter price.
Working Principle

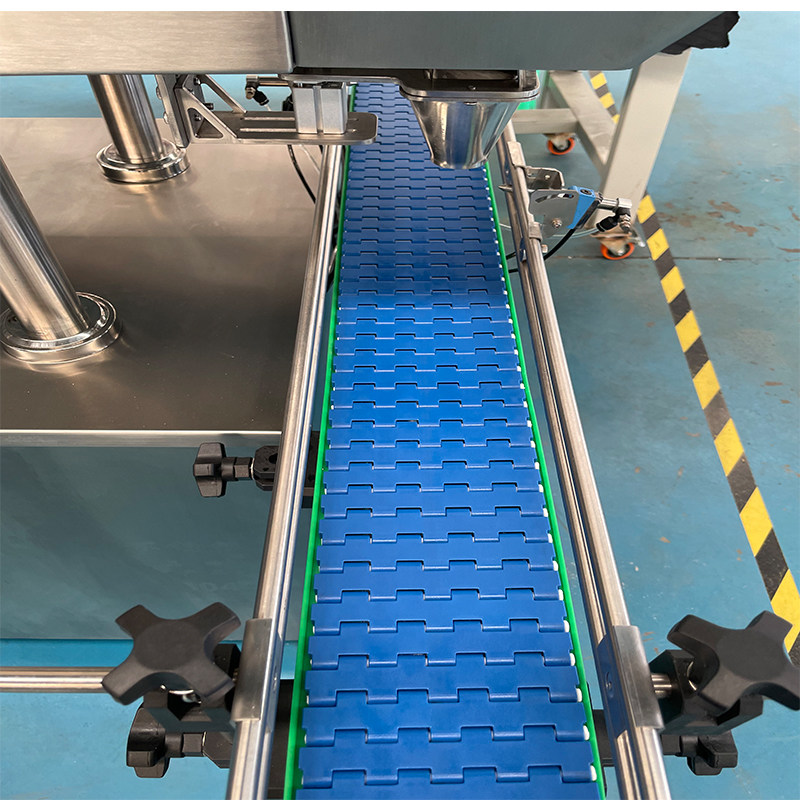

First, the bottle blocking device will block the bottles conveyed by the conveyor belt, and it is in a state of waiting for bottling
Manually pour the medicine into the hopper on the top of the counting machine
Materials are sent to the small warehouse in an orderly manner through the vibration of the feeding panel
The counting photoelectric sensor of the medicine store quantitatively counts the number of medicines to be loaded into the bottle
Finally falls into the bottle and transports it to the next device

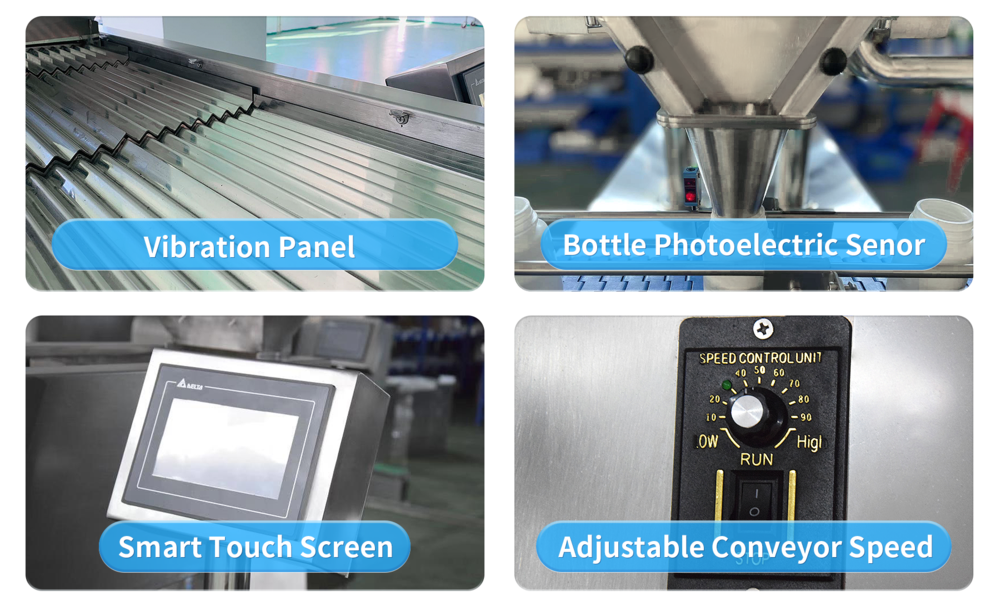

Features
Compatible with a variety of capsule and tablet sizes, enabling accurate counting of granules
Anti-high dust photoelectric sensing technology

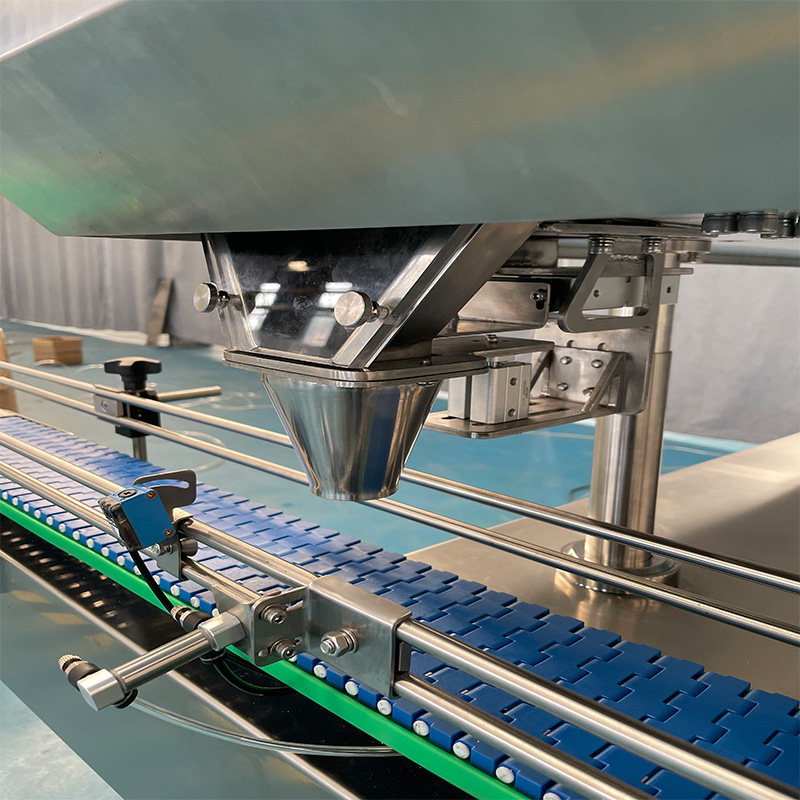

The design of the leaking nozzle ensures smooth material unloading
Multiple detection and alarm control functions
Automatic detection of bottle photoelectric sensor
Configure dust box to reduce dust pollution (optional)
Techical Parameters
Model | SL-8 |
Application | 1. Filled capsule (00-5#) 2. Soft Gelatin capsule 3. chewing gum 4. tablet 5. other solid object under machine range |
Hopper Volume (L) | 30 |
Capacity (bottles/min) | 10-30 (80-100 pcs/bottle) |
Filling Quantity (pcs/bottle) | 2-9999 (adjustable) |
Bottle Size (mm) | Diameter: 30-100 Height: 40-180 |
Counting Size (mm) | 1. pills diameter: ≤22 2. 000-5 capsules soft capsules 3. tablets diameter: 3.5-22 (plain tablets, special-shaped tablets, sugar-coated tablets) |
Compressed Air | 0.6MPa 3.5L/min |
Power | 220V/50Hz 0.6kW |
Machine Weight (kg) | 320 |
Machine Size (L*W*H mm) | 1200*1400*1700 |
Application
The capsule counting and filling machine is mainly used in pharmaceutical, food, chemical, cosmetic and more industry. It is suitable for counting and bottling of solid preparations, common products such as hard-gel and soft-gel capsules (000-5#), tablets (Dia. of 3.5-22), sweets, chewing gum, etc.
