Application:

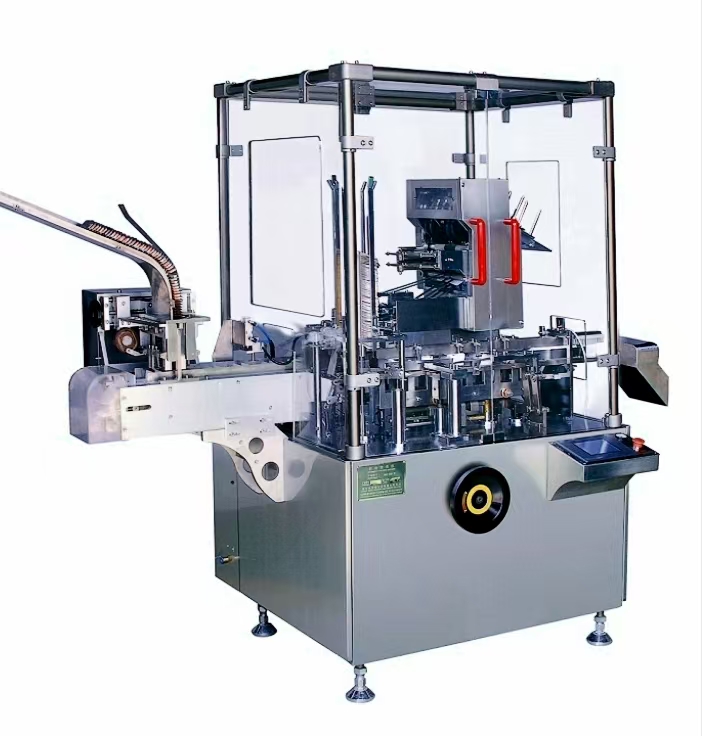

This equipment is new model developing base on integrated domestic and foreign vanguard technology .It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
This machine is suitable for automatic feeding product of multi-variety multi-specifications into carton (either for blister or bottle).Adjust automatic feeding structure conveniently,setup quantity of blisters on touch screen randomly.On line product feeding and detecting,leaflet fold(1-4folds) and feeding,leaflet detecting,canton opening and forming,products and leaflet pushing into carton,printing batch number,sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.
Features:
1:International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2:Adopt human-machine operation system.
3:Automatically stop when machine is overload.
4:Automatically reject lacking of package product and leaflet.
5:Automatically display trouble, Alarm and count finished products.
6:Stable performance,operation is easy.
Main technical parameters
Item | Parameters |
Encasing speed | 30-120 boxes /min |
Box | Quality requirement | 250-350g/㎡【Base on carton size】 |
Dimension range（L×W×H） | （65-125）mm×（30-85）mm×（12-50）mm |
Leafle | Quality requirement | 60-70g/㎡ |
Unfolded leaflet specification | （80-250）㎜×（90-170）㎜ |
Fold range | 【1-4】Fold |
Compressed air | Working pressure | ≥0.6mpa |
Air consumption | 120-160L/min |
Power supply | 220V 50HZ |
Main motor power | 0.75kw |
Machine dimension(L×W×H) | 2150㎜×1140㎜×1800㎜ |
Machine weight | 1100kg |
